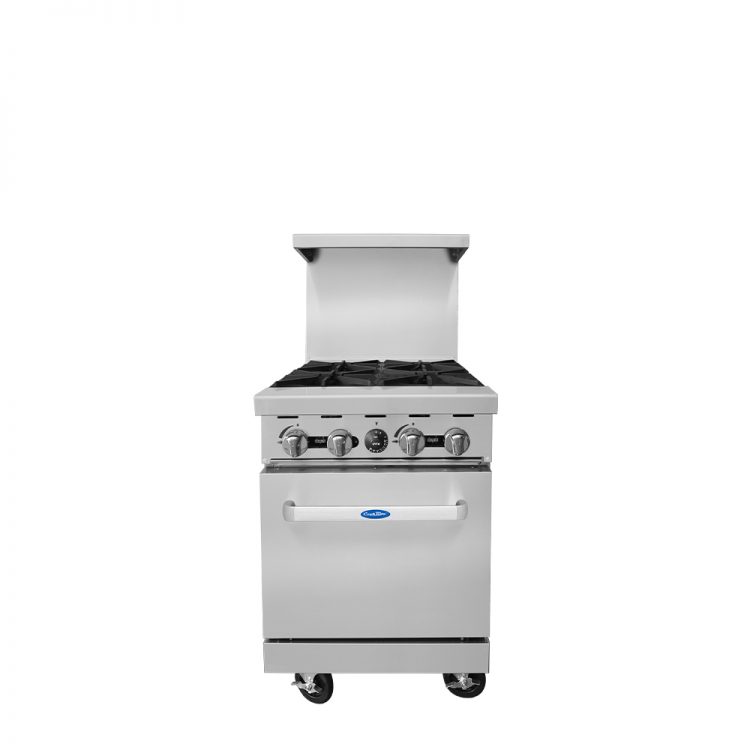

AGR-4B 24″ Gas Range (4 Burner Model)

Standard Features:

  • Stainless steel exterior including front, back sides, kick plate, back guard and over shelf
  • Heavy duty 12” X 12” removable, cast iron top grates
  • Drip tray provided under burners to catch grease drippings
  • 32,000 BTU top burners & 27,000 BTU oven burners
  • Oven temperature range between 175°F to 550°F
  • Standing pilot for open top burners
  • Oven pilot with 100% safety shut off
  • Enamel interior oven for easy cleaning
  • Multiple position oven rack guides
  • Two(2) chrome oven rack per oven standard
  • Available in Natural and Propane
  • 3/4” NPT rear gas connection and regulator provided
  • Four(4) casters standard



Optional Accessories:

  • Leg kit part #: 301110006
  • AGR-4B extra oven rack part #: 301100013
  • AGR-6B and AGR-10B extra oven rack part #: 301100012



Categories: , , Tag: Brand: .
Download Now
Model Gas Type Burner Name Total BTU BTU/h Number of Burners Value Types Oven Size Hot Plates Working Area (inch) Exteriorl Dimensions (inch) Net Weight (lbs) Gross Weight (lbs)
AGR-4B NG Hot Plates
Oven
128,000
24,000
4
1
Pilot Light 20×26×14 4pcs
11 4/5×11 4/5
24×31×57 3/8 326 428
LP Hot Plates
Oven
92,000
24,000
4
1
