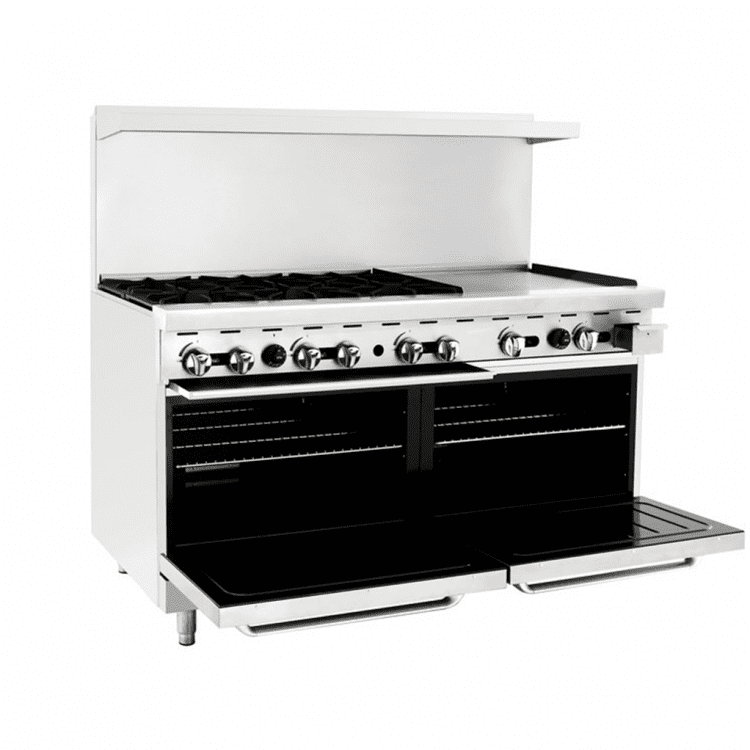

AGR-6B24GR 60’’ Combination Gas Ranges

Standard Features:

• Stainless steel exterior including front, back
sides, kick plate, back guard and over shelf
• 60” combination ranges standard with a 24”
griddle top with 6 burners
• Heavy duty 3/4” thick polished steel griddle
plate
• Drip tray provided under burners to catch
grease drippings
• 32,000 BTU top burners, 27,000 BTU
griddle & 27,000 BTU oven burners
• Oven temperature range between 175°F to
550°F
• Standing pilot for open top burners
• Oven pilot with 100% safety shut off
• Enamel interior oven for easy cleaning
• Multiple position oven rack guides
• Two(2) chrome oven rack per oven standard
• AGR-6B24GR and AGR-6B24GL are
available in Natural and Propane
• 3/4” NPT rear gas connection and regulator
provided
• Four(4) casters standard

Categories: , , Tag: Brand: .



Download Now
Model Gas
Type
Burner Name BTU’s Number of Burners Valve Types Oven Size
(inch)
Hot Plates Working Area
(inch)
Griddle Working Area
(inch)
Exterior Dimensions
(inch)
Net Weight
(LBS)
Gross Weight
(LBS)
AGR-6B24GR NG Hot Plates 192,000 6 Pilot light 26.5x26x14 6pcs
11.8×11.8
24×20.625 60x31x57.375 775 941
Griddle 48,000 2
Oven 54,000 2
LP Hot Plates 138,000 6
Griddle 48,000 2
Oven 54,000 2
AGR-6B24GL NG Hot Plates 192,000 6 Pilot light 26.5x26x14 6pcs
11.8×11.8
24×20.625 60x31x57.375 775 941
Griddle 48,000 2
Oven 54,000 2
LP Hot Plates 138,000 6
Griddle 48,000 2
Oven 54,000 2
