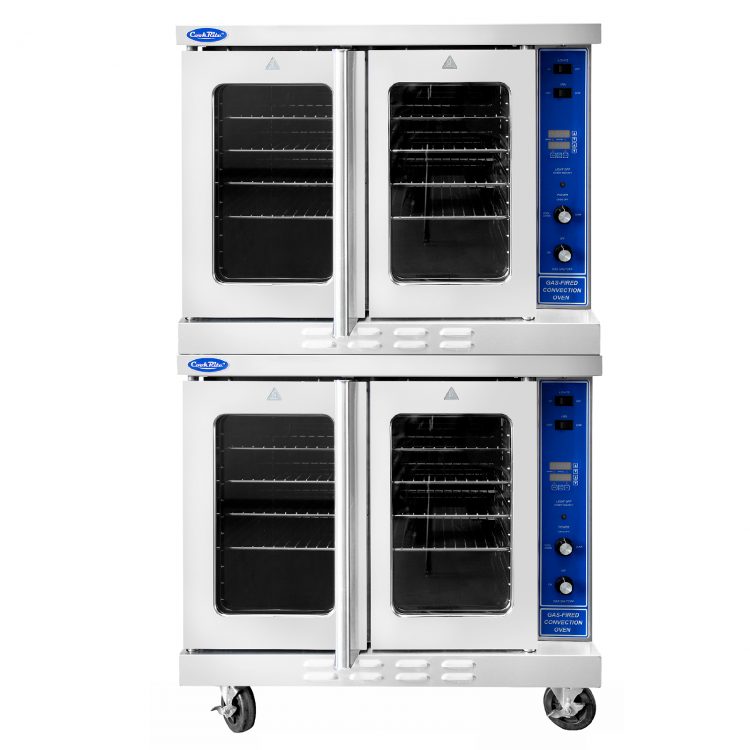

ATCO-513NB-2 — Gas Convection Ovens (Standard Depth)
Standard Features
- Stainless steel exterior and enamel interior with coved corners for easy cleaning
- 50/50 dependent doors with double pane thermal tempered glass on Bakery Depth model
- Bakery Depth model accepts five(5) 18’’ X 26’’ standard full-size baking pans left to right or front to back
- Standard Depth model accepts five(5) 18’’ X 26’’ standard full-size baking pans left to right
- Standard Depth model has independent doors
- Temperature ranges from 150°F to 500°F
- Interior oven light(s) standard
- 46,000 BTU’s per oven capacity
- Two speed-fan with adjustable cool down mode
- Five(5) nickel plated oven racks on 13-position rack guide
- Door interlock switch(s) automatically turns fan and burner off when the doors are opened
- Electronic spark ignition with an automatic pilot system with safety shut off
- 3/4’’ NPT rear gas connection and regulator
- Natural or Propane models available
- NEMA 5-15 plug for controller
- ATCO-513B-1 comes standard with leg kit #21211001025
- ATCO-513B-2 comes standard with connection kit #21211001026
- ATCO-513NB-1 comes standard with leg kit #21211001057
- ATCO-513NB-2 comes standard with connection kit #21211001058
- Built in regulator
- Features
- Specification Sheet
- Certifications
- Warranty/Instruction Manual
Stainless Steel
This corrosion resistant stainless steel is the defacto finish for those looking to update their kitchen style with new appliances. With its elegant and modern appearance, stainless steel is a perfect neutral tone that can fit into almost any kitchen design. Our Premium stainless steel is easy to clean and maintain.
Nickel Plated Wire Racks and Rack Slides
The exterior and interior are made of stainless steel for extreme durability, and the nickel plated racks are included with your oven to allow for easy baking right out of the box!
| Model | Shelves | Rack Guides | Voltage (V/Hz/Ph) |
Total BTU |
Interior Dimensions (inch) | Exterior Dimensions (inch) | Net Weight (lbs) | Gross Weight (lbs) |
|---|---|---|---|---|---|---|---|---|
| ATCO-513NB-2 | 10 | 26 | 115/60/1 | 92,000 | (2pcs) 29" x 18" 9/10 x 24" | 38" 3/16 x 40" 13/16 x 69" | 758 | 1090 |
ETL Listed Certifications
Our products have been tested and certified through independent testing and periodic follow-up inspections by an NRTL. Our products comply with requirements of widely accepted product safety standards in the US and Canada.
1 Year Parts and Labor Warranty
Atosa warrants all new refrigerated components, such as the cabinet and all parts, to be free from defects in materials or workmanship up to a period of one (1) year. For full warranty download the spec sheet for this product.
ATCO-513B-1 / ATCO-513B-2
Instruction Manual for Gas Convection Oven
