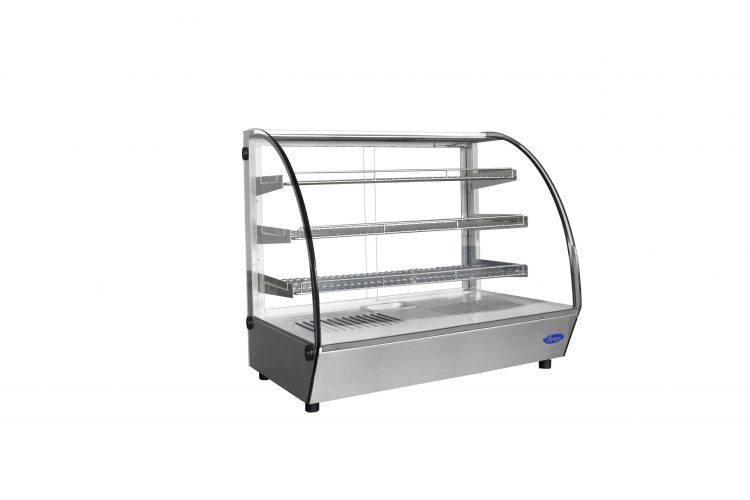

CHDC-44 — Countertop Heated Curved Display Case (4.4 cu ft)
Standard Features:
- Stainless steel exterior & interior
- Removable water pan to add humidity
- Electronic digital controller
- Three(3) stainless steel shelves standard
- Maintains temperatures between 86°F – 194°F
- Magnetic door gasket(s) standard for positive
door seal - Two(2) rear sliding glass doors
- LED interior lighting
- Leveling legs
- NEMA 5-15 plug with 5’ cord
- Features
- Specification Sheet
- Certifications
- Warranty/Instruction Manual
Stainless Steel
This corrosion resistant stainless steel is the defacto finish for those looking to update their kitchen style with new appliances. With its elegant and modern appearance, stainless steel is a perfect neutral tone that can fit into almost any kitchen design. Our Premium stainless steel is easy to clean and maintain.
Dixell Digital Temperature Control
Dixell controller is the #1 selling controller used by professionals for refrigeration applications. Dixell temperature controls are needed to control water temperature and water temperature differentials.
Heave Duty Compressor
Equipped with variable capacity heavy duty compressors which can save up to 40% more energy and emit significantly lower noise when compared to a conventional compressor.
Led Lighting
Brighter and longer lasting LED lights provide attractive, enhanced illumination compared to the fluorescents. It saves energy by producing less heat, while maximizing the visibility in the display area.
Magnetic Door Gaskets
Our seals keep heat, cold, moisture and dust in our out! Flexible gaskets with magnetic strip inserts provide energy-efficient seals without the use of door latches. These gaskets are NSF approved.
| Models | Door | Capacity (Cu. Ft.) | Shelves | Rated Current (A) | Voltage (V/Hz/Ph) | Leveling Legs (inch) | Power (W) | Exterior Dimensions (inch) | Net Weight (lbs) | Gross Weight (lbs) |
|---|---|---|---|---|---|---|---|---|---|---|
| CHDC-44 | 2 | 4.4 | 3 | 10.5 | 115/60/1 | 1.5 | 1250 | 27" 3/5 × 22" 1/10 × 26" 2/5 | 95 | 128 |
ETL Listed Certifications
Our products have been tested and certified through independent testing and periodic follow-up inspections by an NRTL. Our products comply with requirements of widely accepted product safety standards in the US and Canada.
1 Year Parts and Labor Warranty
Atosa warrants all new refrigerated components, such as the cabinet and all parts, to be free from defects in materials or workmanship up to a period of one (1) year. For full warranty download the spec sheet for this product.
5 Year Compressor Warranty
In addition to the two (2) year warranty, Atosa warrants its sealed compressor to be free from defects in both material and workmanship under normal and proper use and maintenance service for a period of three (3) additional years from the date of original installation.
