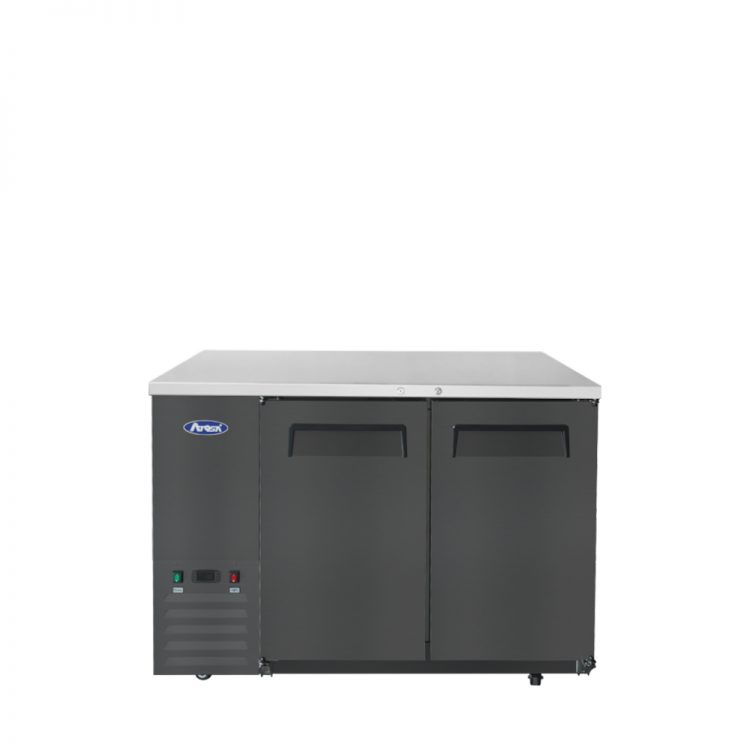

SBB48GRAUS2 — 48″ Black Shallow Depth Back Bar Cooler
Standard Features:
- Stainless steel exterior & interior
- Electronic temperature controller
- Maintains temperatures between 33°F – 40°F
- Heavy duty compressor with environmentally friendly R290 refrigerant
- Slide out compressor assembly for easy maintenance
- LED Interior light(s)
- Magnetic door gasket(s) standard for positive door seal
- Door lock(s) standard
- Pre-installed epoxy coated shelves
- Pre-installed casters
Optional Accessories:
- Extra shelves – includes 4 shelf clips per shelf
SBB48GRAUS2 – Top Left Shelf part#: W040237801
(Top Right Shelf, Bottom Shelves) W040237701 - BB59GRAUS2 – Top Left Shelf part#: W040235801
(Top Right Shelf, Bottom Shelves) W040235701 - SBB69GRAUS2 – Top Left Shelf part#: W040238101
(Top Right Shelf, Bottom Shelves) W040238001
- Features
- Specification Sheet
- Certifications
- Warranty/Instruction Manual
Environmentally Friendly R290 Refrigerant
R290 (HC) refrigerant is highly refined propane that is a safe, environmentally friendly alternative for the hydrofluocarbon (HFC) refrigerants R134a in refrigerator applications and R404a in freezer applications.
Stainless Steel
This corrosion resistant stainless steel is the defacto finish for those looking to update their kitchen style with new appliances. With its elegant and modern appearance, stainless steel is a perfect neutral tone that can fit into almost any kitchen design. Our Premium stainless steel is easy to clean and maintain.
Digital Temperature Controller
Heave Duty Compressor
Equipped with variable capacity heavy duty compressors which can save up to 40% more energy and emit significantly lower noise when compared to a conventional compressor.
Safety Door Locks
These stainless steel standard door locks protect refrigerator contents and control access to drinks and food.
Magnetic Door Gaskets
Our seals keep heat, cold, moisture and dust in our out! Flexible gaskets with magnetic strip inserts provide energy-efficient seals without the use of door latches. These gaskets are NSF approved.
Pre-installed Casters with Bumper & Brake
Industrial casters are designed to hold up over 150 lbs each. Dia. posts and 3/8 inch inserts. Featuring a swivel design for easy mobility. A set of 4 includes brakes on 2 of the wheels for control and safety.
Led Lighting
Brighter and longer lasting LED lights provide attractive, enhanced illumination compared to the fluorescents. It saves energy by producing less heat, while maximizing the visibility in the display area.
Pre-installed Epoxy Coated Shelves
Our Epoxy Coated Shelves do very well in moist environments. These units are intended for use in humid and moist environments that are found in your walk-in refrigerators and freezers. Their epoxy coating also provides protection from rust and corrosion.
| Model | Doors | Capacity (Cu. Ft.) | Shelves | Casters (inch) | Amps (A) | Voltage (V/Hz/Ph) | HP | Refrigerant | Exterior Dimensions (inch) | Net Weight (lbs) | Gross Weight (lbs) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| SBB48GRAUS2 | 2 | 11.5 | 4 | 2 | 2.3 | 115/60/1 | 1//7 | R290 | 48" x 24" 1/2 x 40" 1/8 | 183 | 227 |
ETL Listed Certifications
Our products have been tested and certified through independent testing and periodic follow-up inspections by an NRTL. Our products comply with requirements of widely accepted product safety standards in the US and Canada.
2 Year Parts and Labor Warranty
Atosa warrants all new refrigerated components, such as the cabinet and all parts, to be free from defects in materials or workmanship up to a period of two (2) years. For full warranty download the Spec Sheet for this product.
5 Year Compressor Warranty
In addition to the two (2) year warranty, Atosa warrants its sealed compressor to be free from defects in both material and workmanship under normal and proper use and maintenance service for a period of three (3) additional years from the date of original installation.
SBB48 / SBB59 / SBB69
Instruction Manual for: Back Bar Coolers
